描绘设备和后端

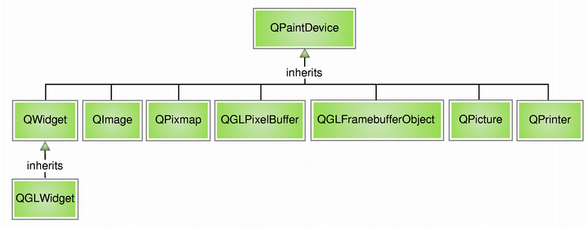

The QWidget class is the base class of all user interface objects. The widget is the atom of the user interface: it receives mouse, keyboard and other events from the window system, and paints a representation of itself on the screen.

The QPixmap class is an off-screen image representation which is designed and optimized for showing images on screen. Unlike QImage , the pixel data in a pixmap is internal and is managed by the underlying window system, i.e. pixels can only be accessed through QPainter 函数或通过转换 QPixmap 到 QImage .

To optimize drawing with QPixmap , Qt provides the QPixmapCache class which can be used to store temporary pixmaps that are expensive to generate without using more storage space than the cache limit.

Qt also provides the QBitmap convenience class, inheriting QPixmap . QBitmap guarantees monochrome (1-bit depth) pixmaps, and is mainly used for creating custom QCursor and QBrush 对象，构造 QRegion 对象，及为像素图和 Widget 设置遮罩。

The QtOpenGL module also provides the QGLPixelBuffer class which inherits QPaintDevice 直接。

QGLPixelBuffer encapsulates an OpenGL pbuffer. Rendering into a pbuffer is normally done using full hardware acceleration which can be significantly faster than rendering into a QPixmap .

The QPicture 类是描绘设备，它记录并重演 QPainter commands. A picture serializes painter commands to an IO device in a platform-independent format. QPicture is also resolution independent, i.e. a QPicture can be displayed on different devices (for example svg, pdf, ps, printer and screen) looking the same.

Qt 提供 QPicture::load () 和 QPicture::save () functions as well as streaming operators for loading and saving pictures.

Support for a new backend can be implemented by deriving from the QPaintDevice class and reimplementing the virtual QPaintDevice::paintEngine () 函数以告诉 QPainter which paint engine should be used to draw on this particular device. To actually be able to draw on the device, this paint engine must be a custom paint engine created by deriving from the QPaintEngine 类。
