World Time Clock Plugin Example

In this example, we simply extend the 自定义 Widget 插件 example and its custom widget (based on the 指针式时钟 example), by introducing the concept of signals and slots.

The World Time Clock Plugin example consists of two classes:

WorldTimeClock is a custom clock widget with hour and minute hands that is automatically updated every few seconds.
WorldTimeClockPlugin exposes the WorldTimeClock class to Qt Designer .

First we will take a look at the WorldTimeClock class which extends the 自定义 Widget 插件 example's AnalogClock class by providing a signal and a slot. Then we will take a quick look at the WorldTimeClockPlugin class, but this class is in most parts identical to the 自定义 Widget 插件 example's implementation.

Finally we take a look at the plugin's project file. The project file for custom widget plugins needs some additional information to ensure that they will work within Qt Designer . This is also covered in the 自定义 Widget 插件 example, but due to its importance (custom widget plugins rely on components supplied with Qt Designer which must be specified in the project file that we use) we will repeat it here.

WorldTimeClock Class

The WorldTimeClock 类继承 QWidget , and is a custom clock widget with hour and minute hands that is automatically updated every few seconds. What makes this example different from the 自定义 Widget 插件 example, is the introduction of the signal and slot in the custom widget class:

class QDESIGNER_WIDGET_EXPORT WorldTimeClock : public QWidget
{
    Q_OBJECT
public:
    WorldTimeClock(QWidget *parent = 0);
public slots:
    void setTimeZone(int hourOffset);
signals:
    void updated(QTime currentTime);
protected:
    void paintEvent(QPaintEvent *event);
private:
    int timeZoneOffset;
};

Note the use of the QDESIGNER_WIDGET_EXPORT macro. This is needed to ensure that Qt Designer can create instances of the widget on some platforms, but it is a good idea to use it on all platforms.

We declare the setTimeZone() slot with an associated timeZoneOffset variable, and we declare an updated() signal which takes the current time as argument and is emitted whenever the widget is repainted.

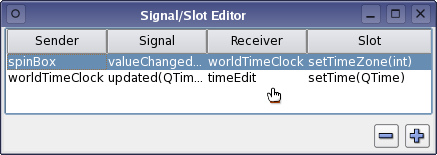

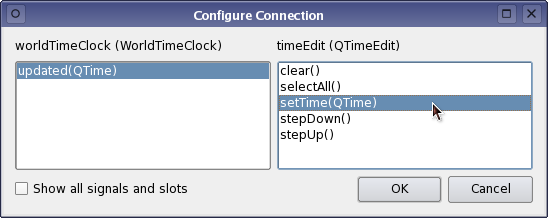

在 Qt Designer 's workspace we can then, for example, connect the WorldTimeClock 小部件的 updated() signal to a QTimeEdit 's setTime() slot using Qt Designer 's mode for editing signal and slots.

We can also connect a QSpinBox 's valueChanged() 信号到 WorldTimeClock 's setTimeZone() 槽。

WorldTimeClockPlugin Class

The WorldTimeClockPlugin class exposes the WorldTimeClock class to Qt Designer . Its definition is equivalent to the 自定义 Widget 插件 example's plugin class which is explained in detail. The only part of the class definition that is specific to this particular custom widget is the class name:

class WorldTimeClockPlugin : public QObject,
                             public QDesignerCustomWidgetInterface
{
    Q_OBJECT
    Q_INTERFACES(QDesignerCustomWidgetInterface)
public:
    WorldTimeClockPlugin(QObject *parent = 0);
    bool isContainer() const;
    bool isInitialized() const;
    QIcon icon() const;
    QString domXml() const;
    QString group() const;
    QString includeFile() const;
    QString name() const;
    QString toolTip() const;
    QString whatsThis() const;
    QWidget *createWidget(QWidget *parent);
    void initialize(QDesignerFormEditorInterface *core);
private:
    bool initialized;
};

The plugin class provides Qt Designer with basic information about our plugin, such as its class name and its include file. Furthermore it knows how to create instances of the WorldTimeClockPlugin 小部件。 WorldTimeClockPlugin also defines the initialize() function which is called after the plugin is loaded into Qt Designer . The function's QDesignerFormEditorInterface parameter provides the plugin with a gateway to all of Qt Designer 's API's.

The WorldTimeClockPlugin class inherits from both QObject and QDesignerCustomWidgetInterface . It is important to remember, when using multiple inheritance, to ensure that all the interfaces (i.e. the classes that doesn't inherit Q_OBJECT ) are made known to the meta object system using the Q_INTERFACES () macro. This enables Qt Designer 要使用 qobject_cast () to query for supported interfaces using nothing but a QObject 指针。

实现为 WorldTimeClockPlugin is also equivalent to the plugin interface implementation in the 自定义 Widget 插件 example (only the class name and the implementation of QDesignerCustomWidgetInterface::domXml () differ). The main thing to remember is to use the Q_EXPORT_PLUGIN2 () macro to export the WorldTimeClockPlugin class for use with Qt Designer :

Q_EXPORT_PLUGIN2(worldtimeclockplugin, WorldTimeClockPlugin)

Without this macro, there is no way for Qt Designer to use the widget.

The Project File: worldtimeclockplugin.pro

The project file for custom widget plugins needs some additional information to ensure that they will work as expected within Qt Designer :

CONFIG      += designer plugin
TEMPLATE    = lib

The TEMPLATE variable's value make qmake create the custom widget as a library. The CONFIG variable contains two values, designer and plugin :

designer : Since custom widgets plugins rely on components supplied with Qt Designer , this value ensures that our plugin links against Qt Designer 's library ( libQtDesigner.so ).
plugin : We also need to ensure that qmake considers the custom widget a plugin 库。

When Qt is configured to build in both debug and release modes, Qt Designer will be built in release mode. When this occurs, it is necessary to ensure that plugins are also built in release mode. For that reason you might have to add a release value to your CONFIG variable. Otherwise, if a plugin is built in a mode that is incompatible with Qt Designer , it won't be loaded and installed.

The header and source files for the widget are declared in the usual way, and in addition we provide an implementation of the plugin interface so that Qt Designer can use the custom widget.

HEADERS     = worldtimeclock.h \
              worldtimeclockplugin.h
SOURCES     = worldtimeclock.cpp \
              worldtimeclockplugin.cpp

It is important to ensure that the plugin is installed in a location that is searched by Qt Designer . We do this by specifying a target path for the project and adding it to the list of items to install:

target.path = $$[QT_INSTALL_PLUGINS]/designer
INSTALLS += target

The custom widget is created as a library, and will be installed alongside the other Qt Designer plugins when the project is installed (using make install or an equivalent installation procedure). Later, we will ensure that it is recognized as a plugin by Qt Designer by using the Q_EXPORT_PLUGIN2 () macro to export the relevant widget information.

Note that if you want the plugins to appear in a Visual Studio integration, the plugins must be built in release mode and their libraries must be copied into the plugin directory in the install path of the integration (for an example, see C:/program files/trolltech as/visual studio integration/plugins ).

For more information about plugins, see the 如何创建 Qt 插件文档。
